OTDR Tester Multi-mode 850/1300nm 20/26dB
This customized Multi-mode OTDR MM Tester is the new generation of intelligent meter for the detection of fiber communications systems.

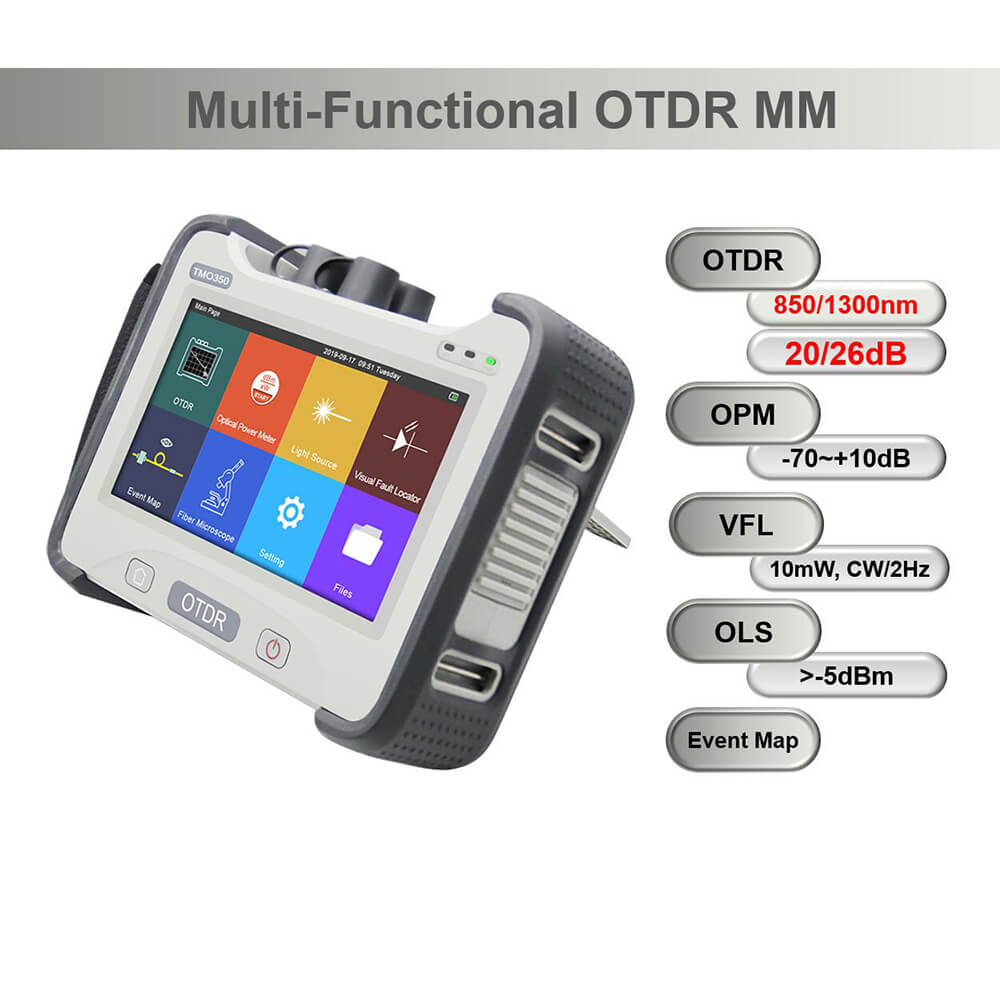

With its 7-inch capacitive touching screen, this 5 in 1 multi-functional OTDR Fiber Tester -- OTDR, Optical Power Meter, Visual Fault Locator, Optical Light Source, Event Map (IOLM), is surely able to meet your FTTX testing needs.
- Testing wavelength: 850/1300nm
- Dynamic range: 20/26dB
- Event Dead Zone: 0.8m
- Attenuation Dead Zone: 4m
- Pulse Width: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
- Testing Distance: 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km
- Linearity: ≤0.05dB/dB
- Internal Visual Source: 10mw, CW/2Hz
Order in the next to get it between and
hoursminutes
Key Characteristics of This OTDR
Supports Multi-measuring and Real-time Test
- With user friendly UI design, this OTDR is simple to use, finish measurement by just one button
- This is a Multi-mode OTDR tester (OTDR MM) with 850/1300nm and 20/26dB

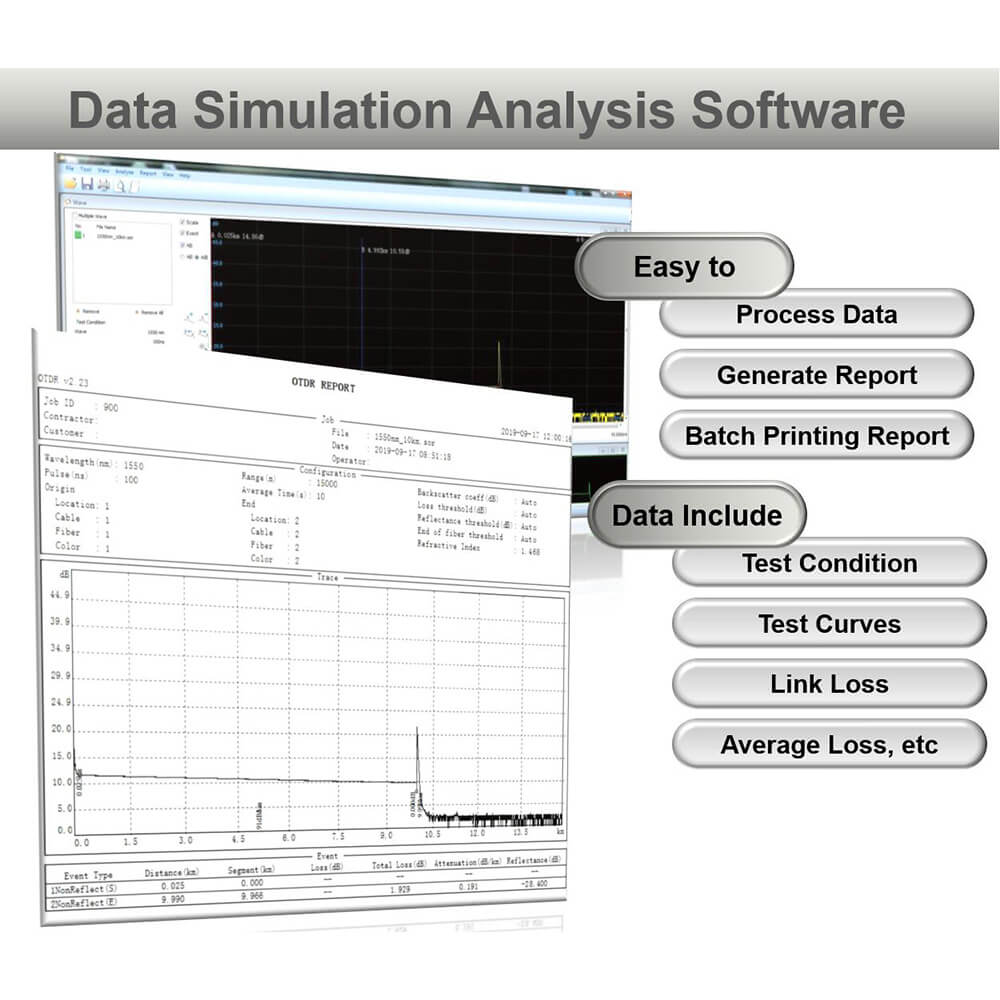

Data Simulation Analysis Software Included
- You can easily process, generate and print report through the software
- It’s convenient to preview the curve from computer, offline curve analysis and preview or batch print curve
Equipped with Practical & Useful Accessories
- 2 main USB and one sub-USB ports, for controlling by PC or connect external instrument
- 8G internal memory can store more than 80000 groups curve
- SC, FC, ST, LC adapters are also included for your enhanced convenience

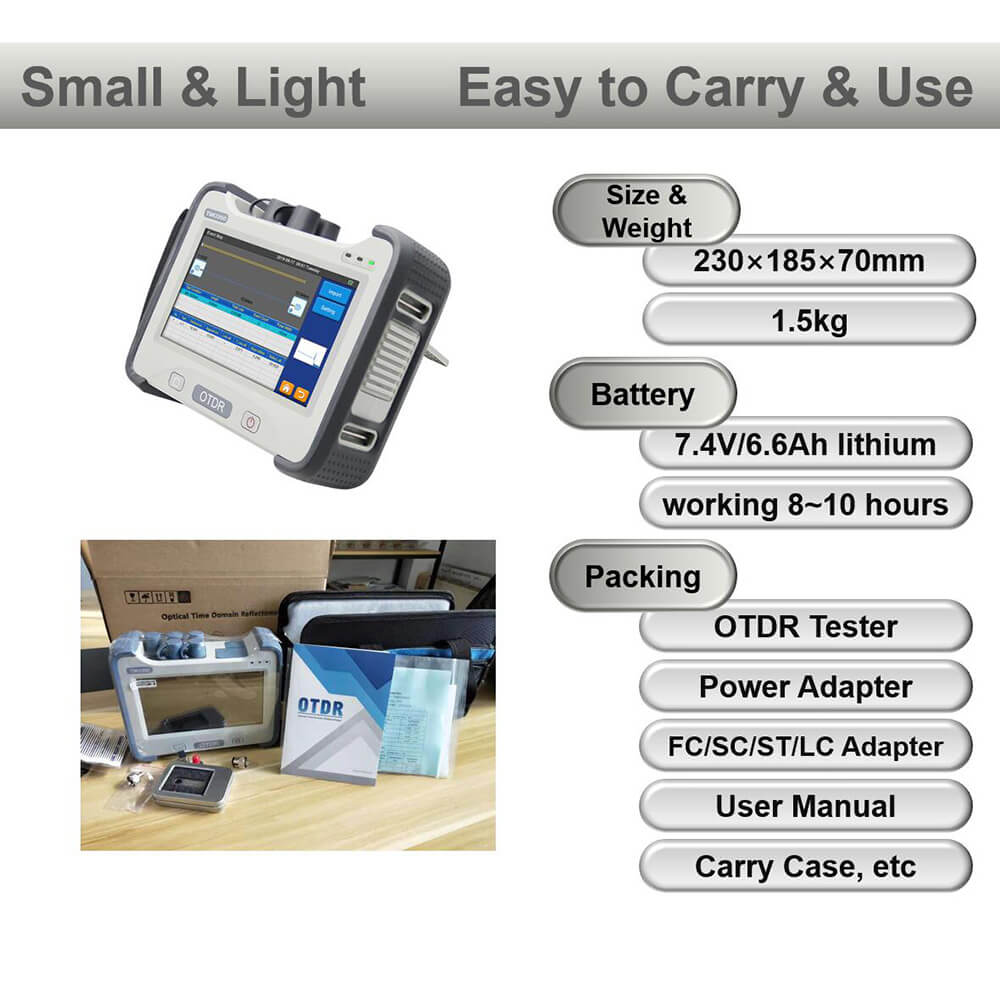

Small and light, with large battery capacity
- 230×185×70mm / 1.5kg, it is easy to carry and use in outdoor field work
- 7.4V/6.6Ah lithium large battery capacity ensures continuous 8-10 working hours
Selected Features
- Internal large power visual laser source for accurate positioning the closer fault point
- Warning function could prevent module of OTDR damaged by optical signal
- Provide data simulation software to process, generate and print report
- Internal -5dBm stable laser source
- Supports English and Spanish input, user-friendly interface. Analog keyboard is also available
- Measuring units can be displayed in Meter, Inches and Miles
This OTDR Fiber Optic Tester is good for
- Measure the loss of splicing points, optical connectors and adapters
- Measure the loss of single fiber or cable
- Measure the length of cable, set different refractive index for various fibers
- Locate the position of broken point, Optical connector and adapter
- Measure the discrete reflection ratio between SR points
- Measure return loss for whole fiber circuit including connecting points and s points
Packing List
- Main unit, 8.4V power adapter, Lithium battery, FC/SC/ST/LC adapters, USB cord, User guide, CD disk, carrying case
Notes
- Fiber Microscope Function Does NOT available in this OTDR tester. It is sold separately.
