Specification for OPM
Measurement Range: -70~+10 dBm
Calibrated Wavelength: 850/1300/1310/1490/1550/1625nm
Sensor Type: InGa As
Accuracy: 0<±3% (-10dBm\22°C)
Resolution: Linearity: 0.1%, Non-linearity: 0.01dBm
Calibrated Wavelength: 850/1300/1310/1490/1550/1625nm
Sensor Type: InGa As
Accuracy: 0<±3% (-10dBm\22°C)
Resolution: Linearity: 0.1%, Non-linearity: 0.01dBm

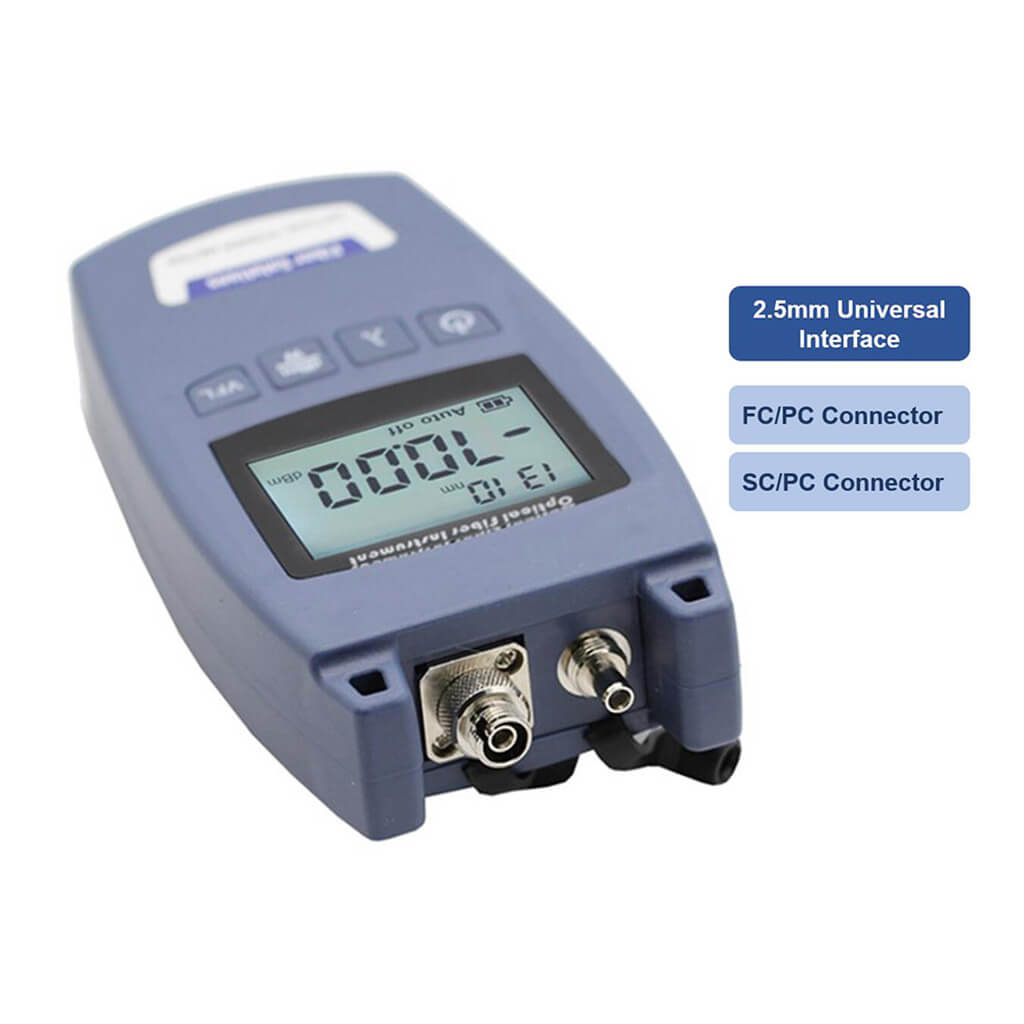

Connector: Changeable FC/PC SC/PC
Specification for VFL
Output power: 10mw
Range: 12-km@SM
Connector: 2.5mm Universal
Laser safety rating: Class 2
Wavelength: 650nm±20nm
Output modes: Continuous (CW), 2 Hz pulsed

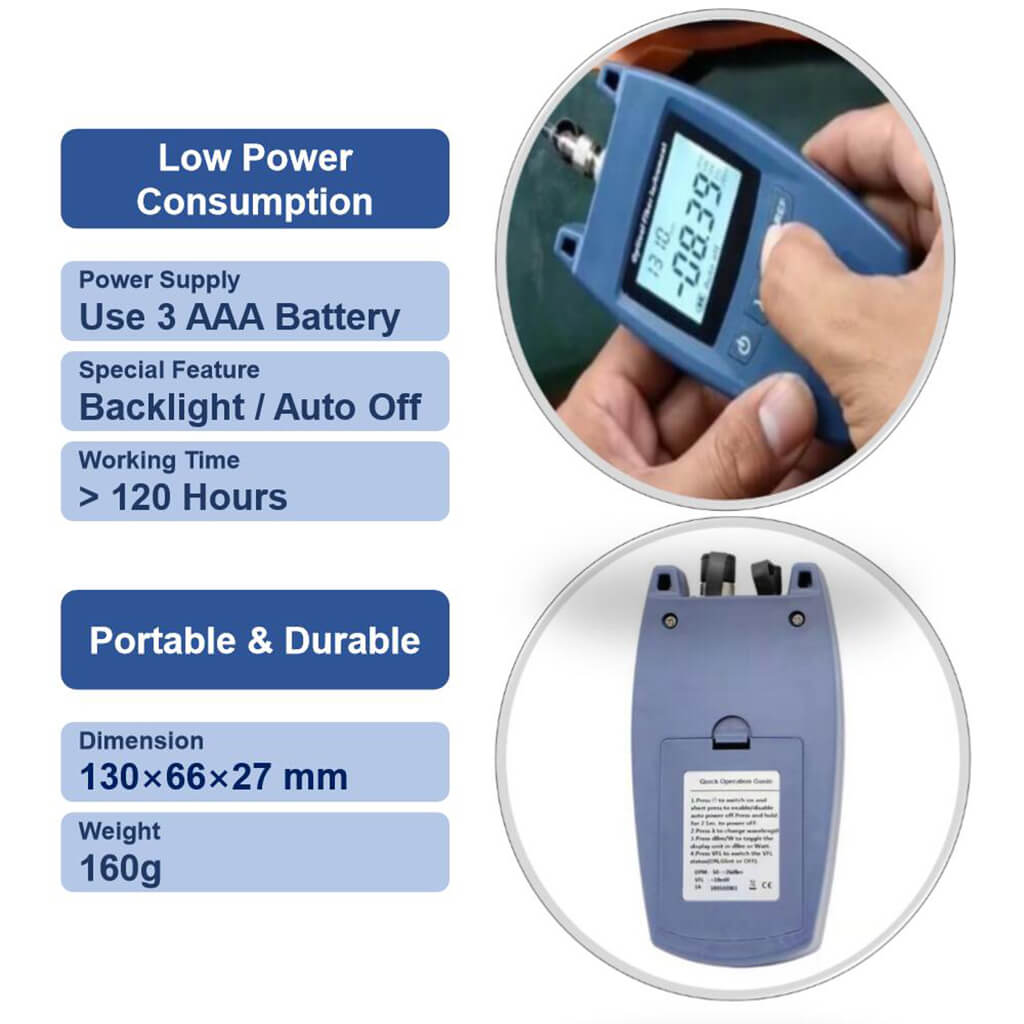

Power Source: 3*AAA dry batteries (battery does not include)
Continuous Working Hours: About 120 hours (without backlight)
Dimension: 130mmx63mmx29mm / about 160g
Dimension: 130mmx63mmx29mm / about 160g
Standard Packing List
- Tester *1
- Carrying bag *1
- User’s manual *1
Maintenance Advises
- Keep all optical connectors and surfaces free from oil, dirt or other contamination to ensure proper operation
- Please cover the dust cap when not in use to keep the connector clean
- Regularly clean the connector
- Take out the battery when not in use for a period of time
