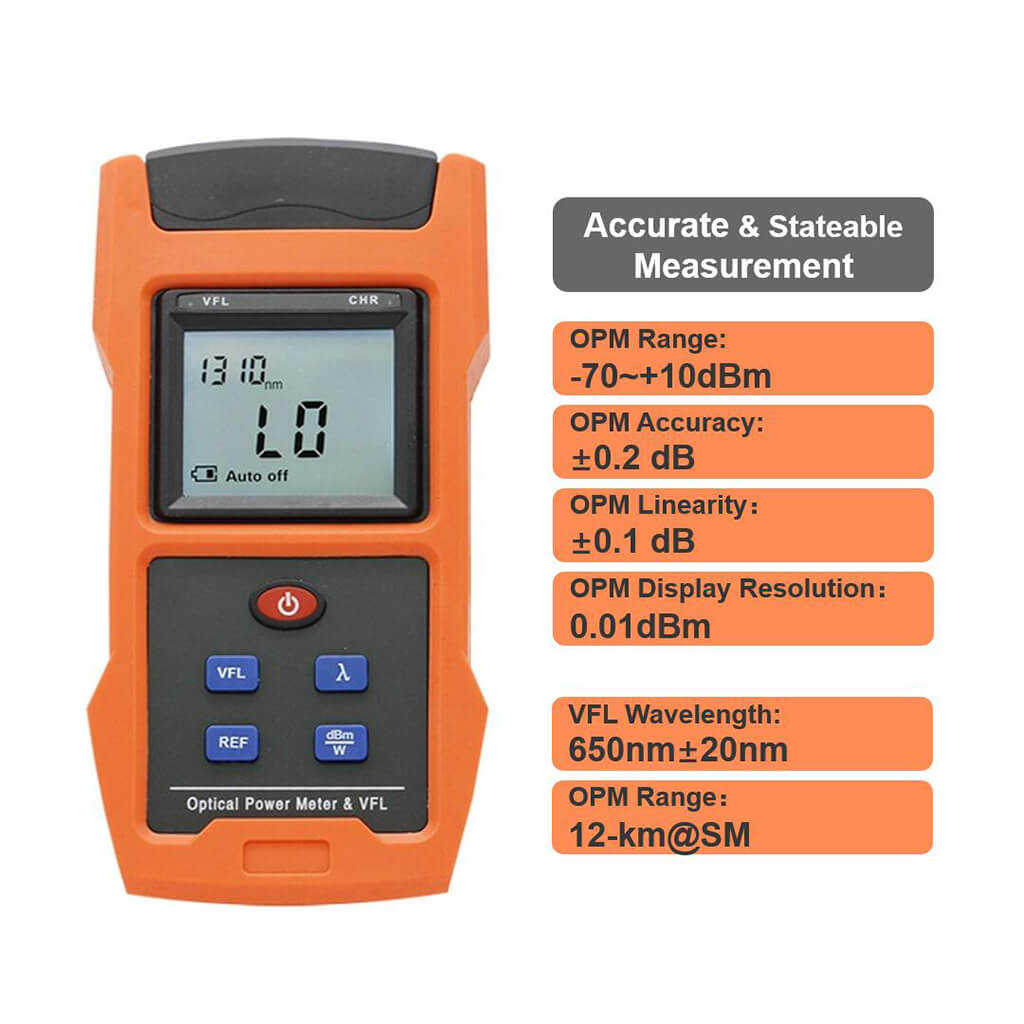

Optical Power Meter with Visual Fault Locator
Specification for Optical Power Meter
Measurement Range: -70~+10 dBm
Calibrated Wavelength: 850/1300/1310/1490/1550/1625nm
Sensor Type: InGa As
Accuracy: ±0.2 dB
Power Measurement Linearity: ±0.1 dB
Display Resolution: ±0.1 dB
Connector: Changeable FC/PC SC/PC
Specification for Visual Fault Locator
Output power: 10mw
Range: 12-km@SM
Wavelength: 650nm±20nm
Output modes: Continuous (CW), 2 Hz pulsed
Continuous Working Hours: >200hours(only OPM Work), ≥50 hours(10mWVFL & OPM Work meanwhile)
Power Source: Rechargeable Li-ion battery
Dimension: 160*75*10mm / about 250g
Standard Packing
Fiber Light Tester *1
Charger *1
Rechargeable Li-ion Battery *1
Soft Carrying Case *1
User’s Manual *1
FC Connector *1
SC Connector *1
